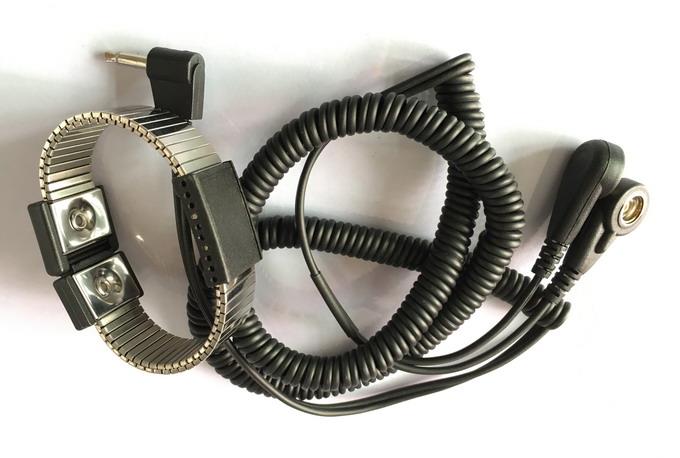

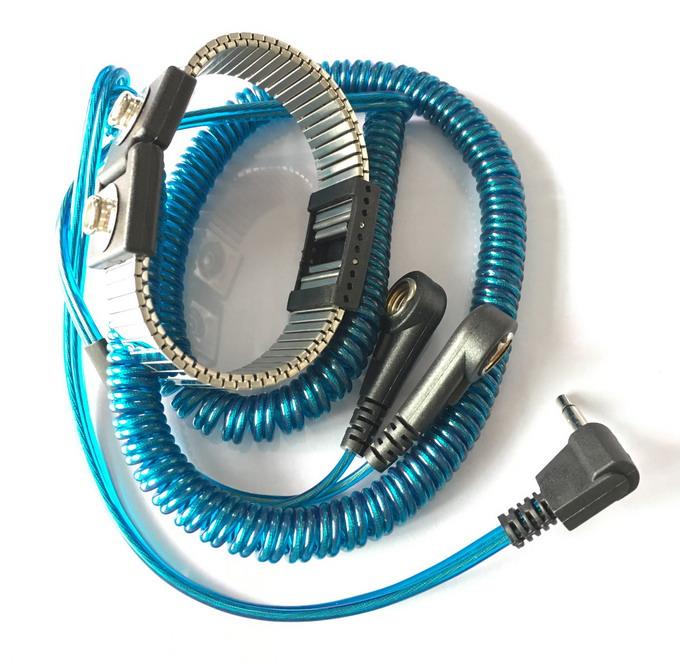

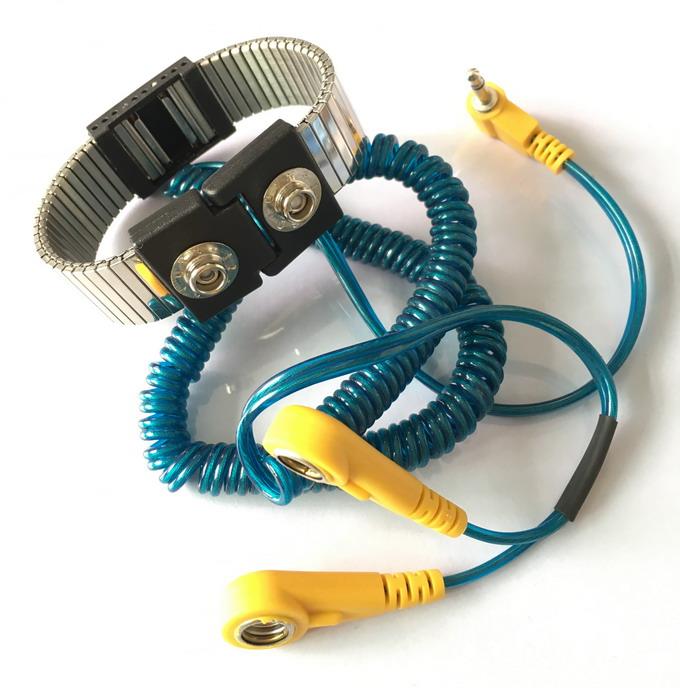

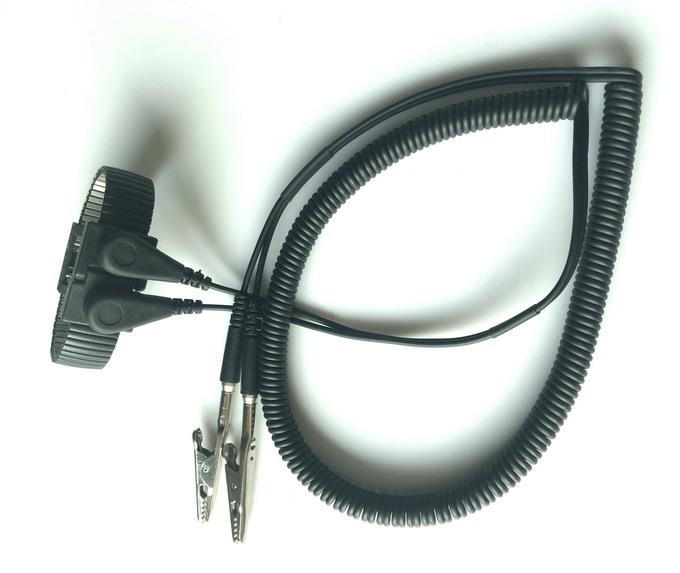

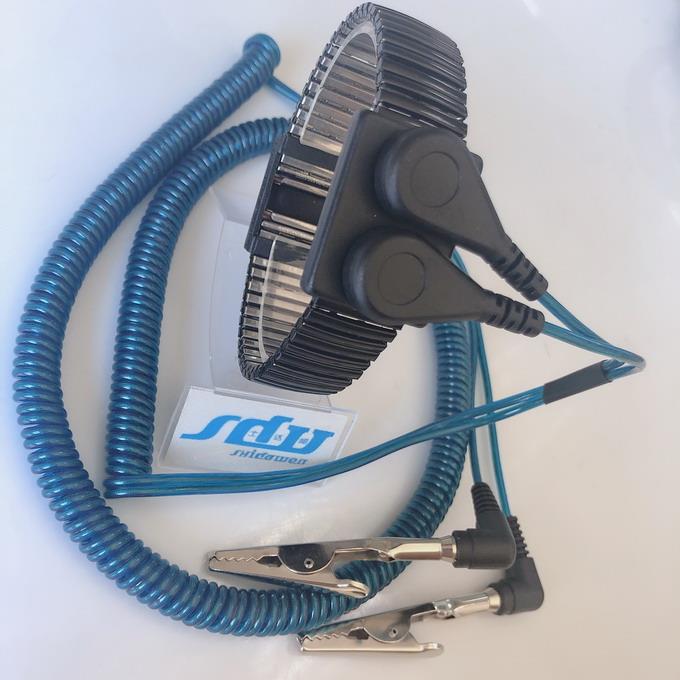

Name: Anti-static metal double loop wrist strap
Product specifications: wrist ring circumference: 20CM, width 1.95CM
Cable length: 1.8M, 2.4M, 3M, any length can also be customized
Single connecting wire diameter: 2.15MM
Wrist ring button diameter: 4MM, 7MM, 10MM optional
Cable plug: eight-petal rotatable lantern flower, 4-petal banana head, 3.5 earphone plug optional

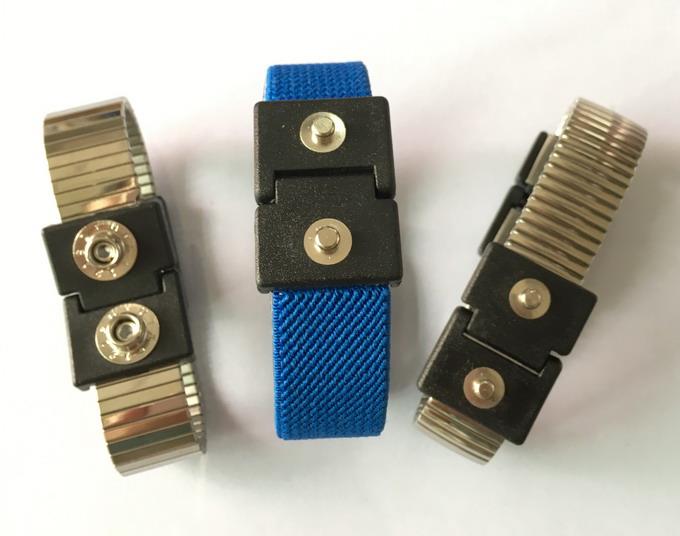

Product material: The wrist ring is a stainless steel bracelet, the color can be divided into natural, black, blue
The plastic sheet is made of Taihua ABS injection molding, and the rectangular stainless steel sheet is close to the skin.
Black or blue transparent PU material, 7-core copper foil wire wrapped inside
Product advantages: Use connecting wires to directly connect the human body and the earth to discharge the electrostatic charge accumulated by the human body
The inner surface of the wrist strap has good electrical conductivity, the elastic length can be adjusted arbitrarily, and it is comfortable to wear
The spring cable can withstand more than 20,000 bending tests without breaking
Special features: This product has extremely high safety performance and is a high-end product. The special structure design makes the effect equivalent to adding "double insurance" when used, and is suitable for places or workstations with extremely high requirements for static electricity.
The dual-loop wrist strap is a dual-loop anti-static wrist strap that is worn on the wrist to connect it to the ground and release static electricity. The plastic block of the wrist strap is equipped with a snap buckle. It is connected with the conductive webbing on the inner side of the plastic block to form two independent circuit loops. Compared with the existing single loop wrist strap technology, when one loop of the wrist strap fails without notice, while the other loop is still working, it reduces the probability of the insulation layer of electronic components being broken down by static electricity and avoids mass scrapping of products. Or the quality drops.
Performance: Resistance at both ends of the ground connection: ≤107Ω
Purification level: Class100
Inner surface resistance: ≤105Ω
Static discharge time: <>
Usage: When using, the human skin must be in close contact with the inner surface of the wristband, and the grounding wire must be connected to the ground through a clip, grounding terminal or a public grounding socket, and the grounding must be unblocked before it can exert its effectiveness.
Application: Widely used in electronics factories, IC, semiconductor chips, communications, aerospace, petroleum and other high-tech product manufacturing industries
