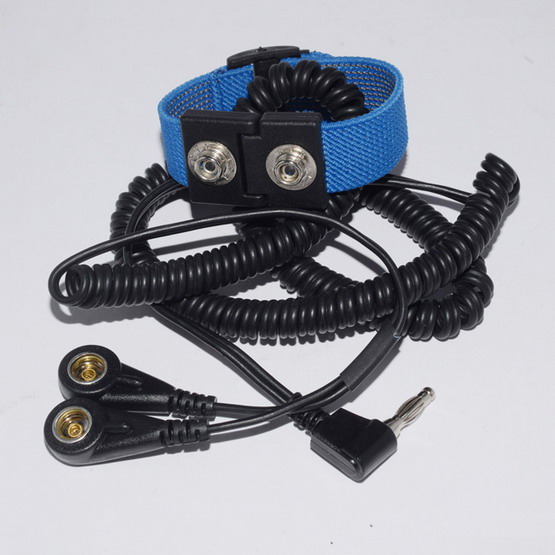

Anti-static double loop wrist strap
Anti-static dual-circuit wrist straps are widely used in the production of various precision industries such as electronics, medicine, and aerospace. It is a good tool installed on the human wrist to release the electrostatic charge accumulated by the human body. The anti-static dual-circuit wrist strap releases the static electricity in the human body by touching the ground, so that when the worker touches the product, the product will not be subject to static electricity. Wearing an anti-static dual-circuit wrist strap can safely remove the static electricity generated by the human body within 0.1 seconds. This kind of wrist strap generally needs to be used in conjunction with a "grounded socket". One ground socket can connect two wrist straps.
Anti-static double loop wrist strapThere is a button on the outside of the plastic block. The button passes through the plastic block through the metal connector, and is connected with the conductive tape inside the plastic block to form two independent circuits. The plastic block is divided into left and right parts, the two plastic blocks are hinged to each other, and the buttons on the outer sides of the two plastic blocks are respectively connected with their respective grounding terminals. Compared with a single-circuit wristband, when the wearer is unconscious, even if one circuit fails, the other circuit of the anti-static double-circuit wrist can continue to work, reducing the probability of electrostatic breakdown of the insulation layer of electronic components and avoiding a large number of The cost of anti-static dual-circuit wrist is low, and the service life of the wrist strap is long.
