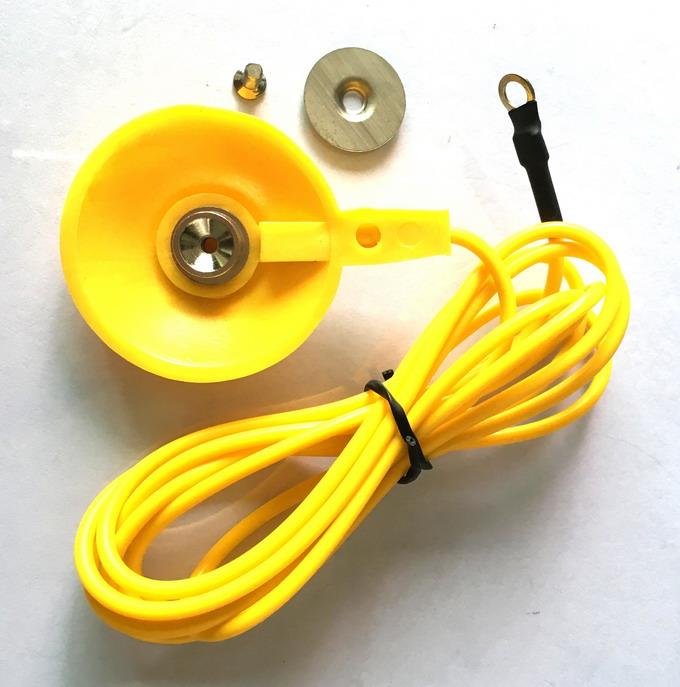

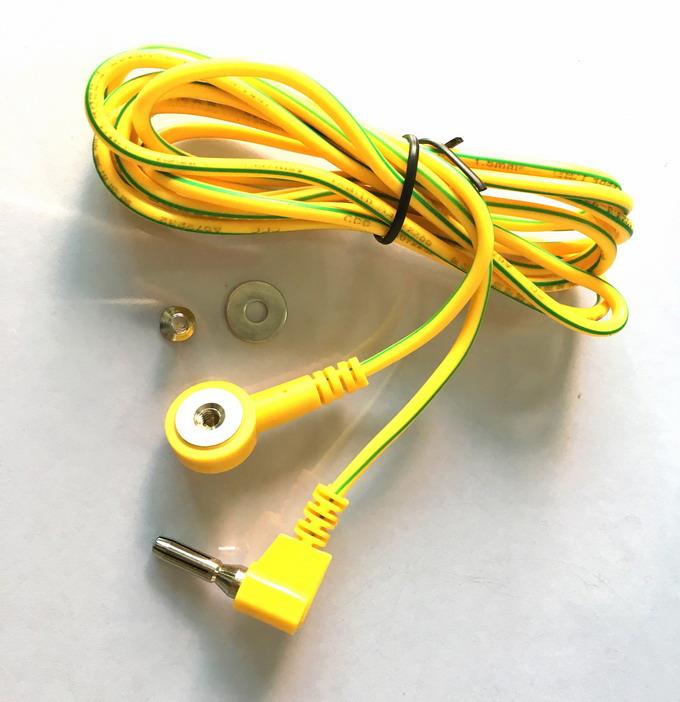

Name: Ground Wire
Product specifications: Ground wire length: 1.8M, 2.4M, 3M, any length can also be customized
Ground wire diameter: 2.05MM, 2.2MM, 2.4MM, 3.0MM
Diameter of grounding wire button: 10MM
Cable plug: Eight-petal rotatable lantern flower, 4-petal banana head, 4MMO type terminal optional
Product material: stainless steel star claw buckle
Black or blue transparent PU material, 7-core copper foil wire wrapped inside
Product advantages: Use the connecting wire to directly connect the workbench pad and the ground to discharge the accumulated electrostatic charge
The spring cable can withstand more than 20,000 bending tests without breaking
Performance: Resistance at both ends of the grounding connection: ≤107Ω, or you can choose not to add resistance according to your needs
Purification level: Class100
Static discharge time: <>
How to use: Use star claws or rivets to connect to the work surface, and connect the other end to the ground through a clamp or O terminal, and ensure that the grounding is unblocked before it can exert its effectiveness.
Applications: Widely used in electronics factories, IC, semiconductor chips, communications, aerospace, petroleum and other high-tech product manufacturing industries
